CAL3K-F Calorimeter

CAL3K-F Oxygen Bomb Calorimeter System

A HIGHLY EXPANDABLE SYSTEM TO GROW AS YOUR LAB GROWS – The CAL3K-F is a flexible system for low to high throughput without compromising on accuracy and repeatability.

APPLICATION : A flexible system typically used in Food/Feed Analysis, Alternative Energy, Scientific Determinations, Coal and Oil Production, Research, Universities and Quality Assurance. In short : wherever the calorific value of a solid or liquid sample must be determined.

Start off with the entry-level system containing the calorimeter, bayonet bomb vessel and oxygen filling station, and grow your system as your budget grows to an advanced system containing 2 air coolers (3K-2) and 3 bayonet bomb vessels (3K-5). The advanced system can complete up to 8 - 10 samples per hour. Part of the CAL3K-F system is the external oxygen filling station (3K-3). The waterless cooler (3K-2) is a powerful air cooler with the ability to rapidly cool the bomb vessel, yet remain environmentally friendly. The sample repeat speed ranges between 6-20 minutes per sample, depending on the system configuration.

The CAL3K-F Oxygen Bomb Calorimeter is highly expandable to cater for increasing laboratory work.

Start off with the most economical single vessel system and expand it as the need arises to a system of 8 - 10 samples per hour. The system uses the proven bayonet vessel common to all CAL3K systems and works in the dynamic (Isoperibol) mode. It has four communication ports with a host of outstanding features that caters for every application.

CAL3K-F Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-F Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-F Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-F Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-F Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-F OXYGEN BOMB CALORIMETER SYSTEM

The CAL3K-F conforms to ASTM D240-09, ASTM D5865-12, ASTM D4809-13, ASTM E711-87, ISO 1928-2009, ISO 18125-2017, GB/T213-2008 and DIN 51900-2 International standards. The CAL3K-F bomb calorimeter uses the Dynamic (Isoperibol) method to measure temperature and calculate the calorific value.

The heart of the system is the quick-locking and sealing bayonet vessel with built-in temperature sensors. This vessel is a dry type vessel, enabling it to be more accurate and faster. The vessel is completely removable for easy sample management, cooling, cleaning and maintenance.

The CAL3K interfaces with different devices, including PC (PC Software), Balance, Printer, LIMS and Bluetooth (Wireless). The unit also integrates fully with software based laboratory and information management systems (LIMS).

The CAL3K-F oxygen bomb calorimeter and CAL3K-2 Air cooler are operated together for effective routine sample determination, using 2 or more bomb vessels. It is recommended to use the air cooler for optimum results and faster throughput. The air cooler can adjusts its program to adapt to your laboratory conditions, allowing for consistent cooling speed.

CAL3K-F APPLICATION

A flexible system that can grow with your needs, upgrading your throughput without compromising on accuracy and repeatability. It is used in Food/Feed Analysis, Alternative Energy, Waste Analysis, Forest Waste, Sugar Mills, Pulp & Paper Mills, Scientific Determinations, Coal and Oil Production, Research, Universities and Quality Assurance. In short : wherever the calorific value of a solid or liquid sample that must be determined, the CAL3K-F will be perfectly suited for the job.

CAL3K-F PERFORMANCE

The CAL3K-F uses a combination of the Dynamic (Isoperibol) method while remaining dry i.e. it is waterless. The minimum determination repetitive cycle time is approximately 6 minutes for the CAL3K-F4 system (fully expanded). Regardless of the CAL3K-F system, once a sample has been loaded into the bomb vessel, a result can be expected within 5 – 10 minutes.

It uses the external oxygen filling station (PART NO : 3K-3).

The fastest performance of 8 – 10 determinations per hour was achieved with one CAL3K-F4 system with 3 bayonet oxygen bomb vessels, and 2 air coolers. This is a full occupation for a single operator.

SYSTEM EXPANSION

The following system components can be added to the CAL3K-F Oxygen Bomb Calorimeter (or purchased separately at a later stage) :

  • CAL3K Air Cooler (3K-2)
  • Bayonet Bomb Vessel (3K-5)
  • The CAL3K-F calorimeter has Air Cooler recognition algorithm to ensure reliable cooling is achieved. Faster sampling times will be achieved once a cooler is used in the Calorimeter system.
COMPLETE CAL3K OXYGEN CALORIMETER SYSTEM

The CAL3K calorimeter requires a PC keyboard to enter commands. The lid design of the calorimeter has one shock which opens the lid automatically once the determination is finished. This is really a nifty new feature, enabling the chamber to ventilate once the determination is complete. The CAL3K-F Oxygen Calorimeter can be supplied in various systems depending on your workload.

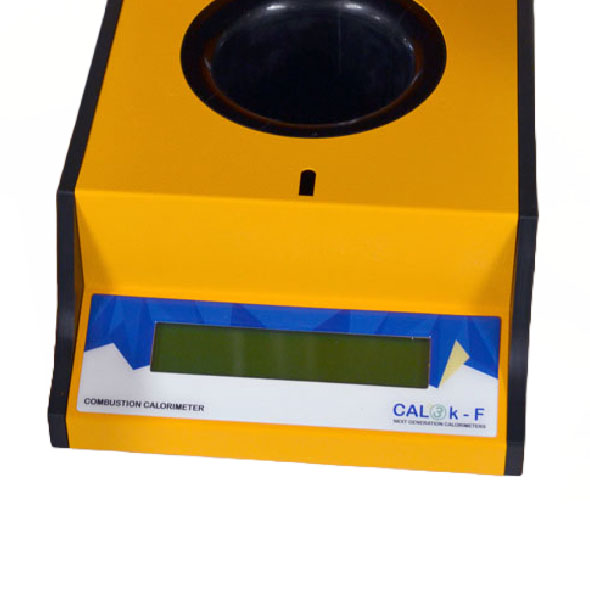

The LCD display has 4 lines. The first line shows what the CAL3K is doing at present, e.g. what mode the calorimeter is in and in what stage of the determination it is presently in. A live result is displayed after 2 minutes giving the operator an indication of the final result.

LCD SCREEN

The second line shows the action the operator should take, e.g. “ENTER MASS, INSERT BOMB”, etc. The third line is reserved for keyboard command and data entry, e.g. Enter benzoic Acid Value in MJ. The fourth line gives additional information relating to faults and actions. If the subject help is activated then all 4 lines are used to display the help functions. The contents of the LCD Screen change automatically as and when various commands are entered. The CAL3K-F calorimeter provides feedback to the operator along the various stages of the determination, as well as if an error or warning is observed.

CALORIMETER WELL AND MANUAL FILLING

This is the CAL3K Oxygen Bomb Calorimeter with the lid open. The gas shock allow for automatic opening. The shocks open the lid to 45°, so that the bomb well can ventilate after each sample determination.

TOP CONTACT – Through the top contact the bomb is fired. This will make contact with the top of the center electrode of the bomb vessel when the LID is closed. The design of the bomb well provides insulation to the outside ambient conditions. Once the LID is closed, the bomb vessel is sealed in the bomb well, insulating it from the outside. This allows the bomb to stabilize in temperature before it is fired.

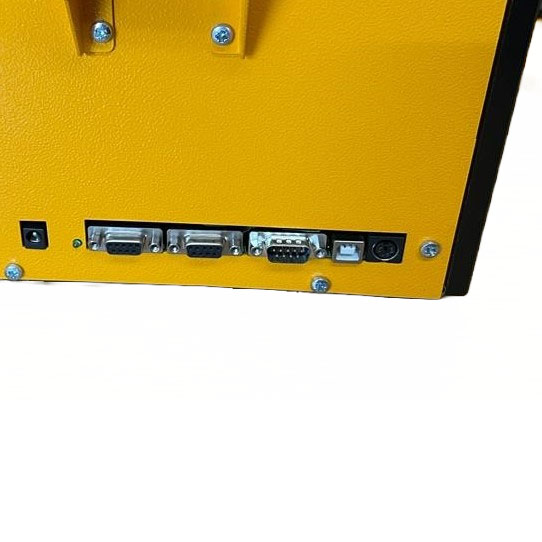

The electronics are located in the rear of the calorimeter. There you will find the firing circuit and the ECU card, which can easily be removed, making maintenance quick and easy.

OPERATOR ASSISTANCE

The CAL3K-F Calorimeter has some added features which will make the operation of the oxygen calorimeter a lot easier and user friendly. Every step in the preparation and determination sequence of a sample will be automatically displayed for the operator to follow. Additionally the operator has a help function related to the present screen (F10), which will assist the operator with step-by-step instructions to operate the calorimeter.

EVENT LOGGING – The CAL3K-F has 80 plus event classifications and can store a maximum of 6800 logged events. A short managerial daily summary is available on the D1 port with the statistical output enabled. The event logs record every step, process, function and operator interaction with the calorimeter.

DEFAULT PARAMETER FIELD – The default parameters can be invoked from a keyboard command. This feature assures the most important parameters are reset to factory standard, ensuring a fully functional calorimeter again.

FAULT AND FIELD TESTING CAPABILITY – The CAL3K-F and vessel each have a factory and a field test built in. The field test allows the operator/user to test the functionality without any instruments or special connections. The each factory test is time stamped and visible in the log file. Should the factory test or vessel test fail, it will stop at the highlight fault. Most of the faults can be easily repaired, others will require an agent.

MAX RECORDING

The vessel records the amount of firings, the max temperature and the date and time. The CAL3K-F records the max starting temperature, the max ambient temperature and date/time. It also records the amount of firings, mass firings, bomb aborts, manual fired and suspect result.

REAL TIME (RT) OUTPUT

The real time printer output is available for external data analysis/computation. This feature is used by universities. The RT printout is available with preceding header and important parameters.

LABORATORY INFORMATION MANAGEMENT SYSTEM (LIMS)

Various output formats are available, with optional result approval from the PC or the keyboard.

TEMPERATURE CONTROL

No temperature control of room/lab required

SEVEN CALIBRATION FIELDS

For different mode and different calorimeters

TEMPERATURE ACCURACY

Temperature accuracy of 10ppm (parts per million)(0.00001°C)

STEP-BY-STEP HELP

Screen prompts assist with step-by-step instructions to operate the calorimeter

BAYONET BOMB VESSEL

Self-Locking and Self-Sealing manual bayonet bomb vessel

FAULT FINDING

Extensive fault finding and testing

HIGH SPEED DETERMINATIONS

Choose between faster or more accurate determinations

RESULTS

Results in MJ/Kg, BTU/Ib or Callg

AIR COOLER

No water required to cool the bomb vessel

EXTREMELY ACCURATE

Extremely accurate (%RSD – 0.05%) determination eliminates multiple sample repeats

COMPENSATION*

Compensation for firing energy and sulphur

BALANCE INTERFACE

Balance interface with baud speed setting

MULTIPLE COMM CHANNELS

1 Wired (USB) and 2 optional wireless channels

PRESET FIELDS

One default setting per mode

IMPROVED INITIAL TIMING

Based on drift and time, or time after drift

USER FRIENDLY

User Friendly Operation

OPERATING PARAMETERS

Operating parameters can be changed via USB interface in experimental mode

FULL LIMS SUPPORT

For the assignment, scheduling, and tracking of samples

10 CALIBRATION AVERAGE

For variable amount of calibration average to suit your application

RESTRICT ACCESS

Operating parameter access is password restricted

FILTER DATA ON EVENTS

Extensive testing and detailed data viewing

ECO FRIENDLY

Eco Friendly – small carbon footprint. No water, low power consumption

LOW POWER CONSUMPTION

Very low power consumption. No temperature controlling required

LARGE STORAGE

Up to 1024 results storage

TEMPERATURE RANGE

Extensive temperature range from 0°C to 70°C

LINEAR SENSORS

Linear temperature sensing with platinum sensors

INTELLIGENT VESSEL

Intelligent vessel with built-in temperature sensing

EVENT LOGGING

Built-in event logging for ~6000 events

SAFETY

Safety checks guarantee the safety of the operator

NO WATER REQUIRED

No Water Bucket. No Spillage.No Measuring

THREE OPERATING MODES

Isothermal, Adiabatic and ISOBATIC (and experimental)

MANUAL OXYGEN FILLING

Makes use of an external oxygen filling station

Specification Information
Working (Operating) Temperature 15-70°C
Storage Temperature 0-70°C
Temperature Resolution 0.000001°C
Reproducibility/Repeatability <0.01% RSD
Resolution 0.0001 MJ/Kg
Results per hour Up to 14 samples per hour using 3 bayonet bomb vessels
Measuring range max 99MJ, 99000
Working temperature min 1°C
Working temperature max 50°C
Temperature Measurement Resolution 10ppm (parts per million)
Cooling Medium Air
Type of Cooling Airflow
Oxygen Operating Pressure Max 40 bar
Balance/Scale Interface RS232, 1200 to 38400 Baud (settable)
Printer Interface RS232, 1.2Kb to 115.2Kb
PC Interface UsB
Power Input 2.4W
Interface External Keyboard ps2
Oxygen Filling Manual
De gasification Manual
Halogen (Decomposition) Vessel Yes, optional
Analysis according to DIN 51900 Yes
Analysis according to ASTM D240 Yes
Analysis according to ASTM D4809 Yes
Analysis according to ASTM D5865 Yes
Analysis according to ASTM E711 Yes
Analysis according to ISO 1928 Yes
Dimensions 350mm x 280mm x 240mm
Weight ~12 kg
Permissible Ambient Temperature 1-35°C
Permissible Relative Humidity 80%
RS232 Interface Yes
USB Interface Yes
Voltage 220-240/ 100-120V, 12VDC, 1Amp
Frequency 50/60 Hz

Animal Feed Research

Food calories are measured in KJ/g, the same as combustible calories. However, the process is different, although the outcome is the same : KJ/g or heat, or calories. Animal feed stock relies on the animal digestion (conversion). A calorimeter burns the lot and measures the released heat. Then a calorimeter can’t be used to measure feed stock?

View Application

Coal & Coke Analysis

The coal industry is the traditional application of calorimeters because coal has a variety of properties, apart from being black. If the coal is used for steam generation then the calorific value is of paramount importance. The calorific value, short CV, is a measure of how much heat can be extracted from it.

View Application

Explosives Analysis

Only explosives which can be ignited by heat from the calorimeter’s firing circuit can be tested in the oxygen calorimeter. Then very minute/small quantities are used for analysis. The calorific value of an explosive is not very high, but the burning speed is.

View Application

Fuel Analysis

As a general rule, volatile fuels are measured very seldom because they are very consistent. However, if the fuel absorbs water, then frequent analysis is called for. Volatile fuel such as alcohol must be prevented from evaporating during the handling process that is from weighing to ignition of the sample.

View Application

Food & Nutrition Analysis

Here is an example of food calories from www.scientificamerican.com. As the article says : “The method of using a combustion calorimeter to measure food calories is not frequently used today. However, after some considerations it can, and is, used today for checking the production quality of food.” Let’s look at the details.

View Application

Oil Analysis

Oils are a non-volatile substance. In general they are not measured frequently because they are very consistent and uniform. Other oil properties are more important than the calorific value, such as taste or viscosity. If an oil is measured in an oxygen calorimeter, then the procedure would be the same as a solid substance.

View Application

Universities

Simple, we at Digital Data Systems (DDS) have been making calorimeters for the last 40 years. We have a wealth of technical knowledge and calorimeter experience second to none. We are continuously improving our systems with the latest technology as it becomes available, allowing the students to work on a cost effective, easy to use…

View Application

Waste Product Analysis

Heating energy is being dumped on our municipal landfill sites. Our landfill sites are being clogged by plastic waste, which battle to bio-degrade over time. Alternative options for managing plastic waste has been identified as mechanical recycling, cement kilns, power station and energy recovery by incineration. Having plastic on landfill sties should be the last option.

View Application

CAL3K-F OXYGEN BOMB CALORIMETER – SYSTEM OPTIONS

ENTRY-LEVEL SYSTEM – F1

The entry level CAL3K-F Calorimeter System is the equivalent to the ECO Calorimeter and includes the following :

  • 1 x 3K-F Calorimeter
  • 1 x 3K-3 Manual Oxygen Filling Station
  • 1 x 3K-5 Bayonet Bomb Vessel

This option DOES NOT include the air cooler.



SAMPLES PER HOUR : 2 samples per hour

DETERMINATION TIME : 10 minutes determination time per sample

BASIC SYSTEM – F2

The basic CAL3K-F Calorimeter System is the equivalent to the E2K Minimum System and includes the following :

  • 1 x 3K-F Calorimeter
  • 1 x 3K-2 Air Cooler
  • 1 x 3K-3 Manual Oxygen Filling Station
  • 1 x 3K-5 Bayonet Bomb Vessel



SAMPLES PER HOUR : 4 samples per hour

DETERMINATION TIME : 10 minutes determination time per sample

STANDARD SYSTEM – F3

The standard CAL3K-F Calorimeter System is the equivalent to the E2K Standard System and includes the following :

  • 1 x 3K-F Calorimeter
  • 1 x 3K-2 Air Cooler
  • 1 x 3K-3 Manual Oxygen Filling Station
  • 2 x 3K-5 Bayonet Bomb Vessel



SAMPLES PER HOUR : 7 samples per hour

DETERMINATION TIME : <10 minutes determination time per sample

ADVANCED SYSTEM – F4

The advanced CAL3K-F Calorimeter System is the equivalent to the CAL2K Calorimeter System (with water cooler) and includes the following :

  • 1 x 3K-F Calorimeter
  • 2 x 3K-2 Air Cooler
  • 1 x 3K-3 Manual Oxygen Filling Station
  • 3 x 3K-5 Bayonet Bomb Vessel



SAMPLES PER HOUR : 8 – 10 samples per hour

DETERMINATION TIME : 6 minutes determination time per sample

System Configuration Options

ENTRY-LEVEL SYSTEM - F1

The entry level CAL3K-F Calorimeter System is the equivalent to the ECO Calorimeter and includes the following :

1 x 3K-F Calorimeter
1 x 3K-3 Manual Oxygen Filling Station
1 x 3K-5 Bayonet Bomb Vessel

This option DOES NOT include the air cooler.

SAMPLES PER HOUR : 2 samples per hour
DETERMINATION TIME : 10 minutes determination time per sample

BASIC SYSTEM - F2

The basic CAL3K-F Calorimeter System is the equivalent to the E2K Minimum System and includes the following :

1 x 3K-F Calorimeter
1 x 3K-2 Air Cooler
1 x 3K-3 Manual Oxygen Filling Station
1 x 3K-5 Bayonet Bomb Vessel

SAMPLES PER HOUR : 4 samples per hour
DETERMINATION TIME : 10 minutes determination time per sample

STANDARD SYSTEM - F3

The standard CAL3K-F Calorimeter System is the equivalent to the E2K Standard System and includes the following :

1 x 3K-F Calorimeter
1 x 3K-2 Air Cooler
1 x 3K-3 Manual Oxygen Filling Station
2 x 3K-5 Bayonet Bomb Vessel

SAMPLES PER HOUR : 7 samples per hour
DETERMINATION TIME : < 10 minutes determination time per sample

ADVANCED SYSTEM - F4

The advanced CAL3K-F Calorimeter System is the equivalent to the CAL2K Calorimeter System (with water cooler) and includes the following :

1 x 3K-F Calorimeter
2 x 3K-2 Air Coolers
1 x 3K-3 Manual Oxygen Filling Station
3 x 3K-5 Bayonet Bomb Vessel

SAMPLES PER HOUR : 8 - 10 samples per hour
DETERMINATION TIME :  6 minutes determination time per sample

Common CAL3K-F Applications

The CAL3K-F calorimeter is suited for a large variety of applications, ranging from animal feed to universities to fossil fuels to waste management. The calorimeter knows no boundary and is not limited to the listed applications. The CAL3K-F calorimeter range offer exceptional communication abilities to the outside world, even in the smallest model, allowing these calorimeters to seamlessly fit in to any laboratory, simply getting the job done. The key features which allow the CAL3K-F to be ideal:

  • No water connection required
  • Small desktop space require
  • No under the counter space required
  • Low power consumption for the calorimeter and the cooler (14W Max)
  • No air conditioning required in the laboratory
  • Cheaper to run per CV than the older Cal2k range
  • Affordable, easy to maintain

The CAL3K-F  is a universal type of calorimeter that is best suited for literately all applications. There is no limit! Should there be a new application that requires a calorimeter, please inform our support staff so that we are able to create an application note for you. Click here to view the common applications.
