E2K Oxygen Bomb Calorimeter System

We call the new upgraded version - Version 2. The system is middle of the range and available in a variety of system options to suit different customer options.

Digital Data Systems has upgraded the E2K bomb calorimeter system. The system now has full menu control. The system can operate fully without a PC and results can be printed directly to a RS232 printer. PC and software is optional, however the system is now fully operational without software. All menu functions can be done via the calorimeter. We call the new upgraded version - Version 2. The system is middle of the range and available in a variety of system options to suit different customer options. Please note that the E2K does not include the language option and some specifications may vary.

E2K Oxygen Bomb Calorimeter | DDS Calorimeters
E2K Oxygen Bomb Calorimeter | DDS Calorimeters
E2K Oxygen Bomb Calorimeter | DDS Calorimeters
E2K Oxygen Bomb Calorimeter | DDS Calorimeters
E2K Oxygen Bomb Calorimeter | DDS Calorimeters
E2K FEATURES
Feature Description
Intelligent Intelligent Operation Support
Improved Software Improved software for faster operation
Easy to maintain Easy to maintain, self test for technicians and operators
Large Memory Large memory for storing +1000 determinations
Compact Size. Fits Almost Anywhere. Able to fit more systems into a standard laboratory
Operation Configuration Operation can be configured to suit every laboratory
Rapid. Accurate. Rapid and accurate determinations
10 Samples Per Hour 10 samples per hour using the CAL2K Water Cooler and 2 bomb vessels
Waterless Vessel Isothermal design using a waterless patented vessel. No bucket, no spillage, no measuring
Convenient Mass Entry Manual/Automatic mass entry through keyboard or balance
Easy to read LCD Display Easy to read LCD display in English and one alternative language
Automatic Calibration Fully automatic calibration in BTU, CAL, MJ/Kg
Intelligent Vessel Uses the CAL2K-4 intelligent vessel with fault diagnostics and microprocessors
PS2 Computer Keyboard Interfaces to standard PS2 computer keyboard
Acoustical Warning Acoustical warning for operator convenience
Extra 8 Digit Group ID Extra 8 digit group ID can be used as sample ID
Print directly without a PC Print results directly without PC on a standard 80 column serial printer with RS232 port
Real-Time clock with one week back-up
Precise and reproducible determination of gross calorific values according to ISO 1928, DIN 51900 and BS 1016:105.
E2K TECHNICAL SPECIFICATIONS
Technical Specification Description
Connectivity RS323
LIMS No
Mass HEAP No
Balance Interface Yes
Result Memory +1000 records
Temperature Resolution 0.000'01C
Display 2 x 16 character LCD
Keyboard PC Type (Standard PS2)
Sample ID 5 characters
Group ID 8 characters
Vessel Record No
Real Time Yes
Chassis Identification No
Calibration Single
History Calibration No
Units KJ, BTU, CAL
Result Compensation No
Result Validation No
Vessel Pressure Monitor No
Oxygen Filling External Manual Filling Station
De-Filling Manual
Max Chassis Recording -
Chassis Name No
Password Protection No
Network Multiple Calorimeters No
Vessel Leak Monitor No
Event Storage No
Event Types -
Event Classification -
Vessel Interchange No
Vessel Lockout, Lock-in No
Sample Repeat Speed 10min (Water Cooler), 25min (Air Cooler)
Operator Time Per Test 2min
Cooling Air/Water
Cooling Modes -
RSD 0.1
Power Consumption 0-264 VAC 50/60Hz 1W
Power Supply External 9V
Water Consumption Yes, re-circulating
Repeatability 0.1%
Calorimeter Type Static Jacket
Number of Vessels Limited (up to 8)
Closure Type Screw Cap
Tests per hour with 2 vessels 6
Bomb Vessel Type Removable
Oxygen Filling Semi-Automatic
Bomb Vessel Washing Manual
Printer Connection RS232
Balance Connection RS232
Environmental 10-40C
Printing of Results Print without PC on standard printer
PC Software Limited
Correction Factors 2
Mass Entry Auto & Manual
CE/TUV Certificate Yes
Vessel Determinations 5000
Spiking Yes
Self Testing No
E2K ADDITIONAL EXTRAS

The complete E2K System consists of : The E2K Calorimeter, E2K-KT Calorimeter Installation Kit, CAL2K-2 Cooler, CAL2K-2-KT Cooler Installation Kit, CAL2K-3 Filling Station, CAL2K-3-KT Filling Station Installation Kit, CAL2K-4 Vessel, CAL2K-4-KT Vessel Installation Kit.

ADDITIONAL EXTRAS
  • E2K-PCS - E2K Windows Operating Software on CD.
  • CAL2K-PCC PC Cable (required for software)
  • Regulator - High Pressure Oxygen Regulator (required and MUST be supplied before installation)
ITEMS TO SOURCE
  • Balance (recommended Sartorius Balance CP64 equivalent)
  • Water Tap Connection
  • PC with Windows 98/2000/NT4.0 installed (required only if running software - a PC is not required to operate the unit)
E2K COMPLETE SYSTEM

The complete E2K system consists of : The E2K Calorimeter, E2K-KT Calorimeter Installation Kit, CAL2K-2 Cooler, CAL2K-2-KT Cooler Installation Kit, CAL2K-3 Filling Station, CAL2K-3-KT Filling Station Installation Kit, CAL2K-4 Vessel and CAL2K-4-KT Vessel Installation Kit.

The E2K gives you options.

The CAL2K-1 Calorimeter can operate as either a stand-alone unit or via a PC.

The E2K Calorimeter System comes in three different system combinations : the standard system, minimum system and elite system.

The minimum E2K system consists of : 1 x E2K Calorimeter, 1 x E2K Calorimeter Installation Kit, 1 x CAL2K-3 Filling Station, 1 x CAL2K-3 Filling Station Installation Kit, 1 x CAL2K-4 Vessel and 1 x CAL2K-4 Vessel Installation Kit. The above option does not include the CAL2K-2 Cooler, reducing the number of samples per hour.

CAL2K E2K Oxygen Bomb Calorimeter System | DDS Calorimeters

The Elite System

The elite E2K system consists of : 1 x E2K Calorimeter, 1 x E2K Calorimeter Installation Kit, 1 x CAL2K-2 Cooler, 1 x CAL2K-2 Cooler Installation Kit, 1 x CAL2K-3 Filling Station, 1 x CAL2K-3 Filling Station Installation Kit, 2 x CAL2K-4 Vessels and 2 x CAL2K-4 Vessel Installation Kits.

The above option includes the CAL2K-2 Cooler and includes 2 vessels, increasing the number of samples per hour to 10.

The Vessel

The CAL2K-4 Vessel is the first of its kind and is the heart of the CAL2K System.

Its sophisticated design allows the temperature to be measured to five decimal places in degrees Celsius. The vessel is an intelligent (SMART) vessel with a microprocessor built into its base. The vessel is capable of : firing counts, identification, memory and reconditioning data.

The vessel is the combustion chamber. It is made of stainless steel and tested up to a pressure of 300 atmospheres (4200psi).

CAL2K Oxygen Bomb Vessel | DDS Calorimeters

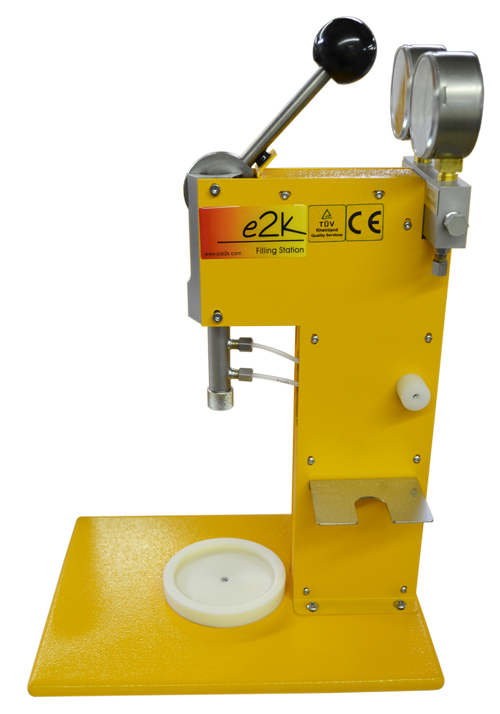

The CAL2K Filling Station

The Filling Station is designed to fill the vessel with oxygen to 3Mpa.

The filling rate is controlled so as not to disrupt the sample in the crucible. The Filling Station is extremely easy to operate and requires minimal adjustments and maintenance.

CAL2K E2K Manual Oxygen Filling Station | DDS Calorimeters

The E2K Water Cooler

The unit is designed to reduce the temperature of a recently fired vessel, obtained from the calorimeter, to ambient temperature in 2-3 minutes.

Solid state cooling is used and the hot junction of the peltier elements is cooled by a continuous trickle of water from the mains water supply.

CAL2K E2K Oxygen Bomb Calorimeter System - Water Cooler | DDS Calorimeters

Air Cooler (Fan)

The e2k calorimeter can be used with a Fan Air Cooler, the e2k-FAN, however this is only applicable with the minimum system option. It takes approximately 20 minutes for the E2K Fan Air Cooler to bring the vessel temperature back to ambient temperature.

CAL2K E2K Oxygen Bomb Calorimeter System - Air Cooler (Fan) | DDS Calorimeters
Animal Feed Research

Food calories are measured in KJ/g, the same as combustible calories. However, the process is different, although the outcome is the same : KJ/g or heat, or calories. Animal feed stock relies on the animal digestion (conversion). A calorimeter burns the lot and measures the released heat. Then a calorimeter can't be used to measure feed stock?

View Application
Coal & Coke Analysis

The coal industry is the traditional application of calorimeters because coal has a variety of properties, apart from being black. If the coal is used for steam generation then the calorific value is of paramount importance. The calorific value, short CV, is a measure of how much heat can be extracted from it.

View Application
Explosives Analysis

Only explosives which can be ignited by heat from the calorimeter's firing circuit can be tested in the oxygen calorimeter. Then very minute/small quantities are used for analysis. The calorific value of an explosive is not very high, but the burning speed is.

View Application
Fuel Analysis

As a general rule, volatile fuels are measured very seldom because they are very consistent. However, if the fuel absorbs water, then frequent analysis is called for. Volatile fuel such as alcohol must be prevented from evaporating during the handling process that is from weighing to ignition of the sample.

View Application
Food & Nutrition Analysis

Here is an example of food calories from www.scientificamerican.com. As the article says : "The method of using a combustion calorimeter to measure food calories is not frequently used today. However, after some considerations it can, and is, used today for checking the production quality of food." Let's look at the details.

View Application
Oil Analysis

Oils are a non-volatile substance. In general they are not measured frequently because they are very consistent and uniform. Other oil properties are more important than the calorific value, such as taste or viscosity. If an oil is measured in an oxygen calorimeter, then the procedure would be the same as a solid substance.

View Application
Universities

Simple, we at Digital Data Systems (DDS) have been making calorimeters for the last 40 years. We have a wealth of technical knowledge and calorimeter experience second to none. We are continuously improving our systems with the latest technology as it becomes available, allowing the students to work on a cost effective, easy to use...

View Application
Waste Product Analysis

Heating energy is being dumped on our municipal landfill sites. Our landfill sites are being clogged by plastic waste, which battle to bio-degrade over time. Alternative options for managing plastic waste has been identified as mechanical recycling, cement kilns, power station and energy recovery by incineration. Having plastic on landfill sties should be the last option.

View Application

RELATED PRODUCTS

Other DDS Calorimeter Products in the same range

E2K Oxygen Bomb Calorimeter System | DDS Calorimeters

ECO CALORIMETER

Our entry level system, the ECO Bomb Calorimeter has an operator test time of 5 minutes per sample, with a removable screw cap vessel, semi-automatic oxygen filling, and can handle 1 sample per hour with 2 bomb vessels. This system is ideal for educational purposes in universities and laboratories that don't require the large quantity of sample throughput.

View Product

ECO Oxygen Bomb Calorimeter System | DDS Calorimeters

CAL2K CALORIMETER

The CAL2K is the top of the range when it comes to CAL2K Calorimeters. This system allows up to 10 samples per hour using 2 vessels, and stores up to 2000 results in it's memory. The operating time per test is approximately 2 minutes, making it fast and accurate.

View Product

CAL3K-U Oxygen Bomb Calorimeter System | DDS Calorimeters

CAL2K BOMB VESSEL

The oxygen bomb vessel is smaller than the conventional vessels, which results in a smaller heat capacity. Special attention has been given to a thermally balanced vessel desgin which has been achieved using computer aided design (CAD) and computer simulation of heat transfer characteristics.

View Product
