CAL3K-AP Calorimeter

CAL3K-AP Oxygen Bomb Calorimeter System

AN AUTOMATED SYSTEM WITH MINIMUM OPERATOR INPUT – Our top of the range product is the most automated calorimeter with a repeat sample speed of 7 minutes. Faster speeds are available on request. The CAL3K-AP is used in factories and scientific laboratories alike and requires a minimum of space and installation. It uses no water and requires ~0.5 watt to operate.

APPLICATION : The CAL3K_AP is useful when a sample can be burned (ignited) and the released heat needs to be measured. It applies to food processing, feed stock composition, material and waste analysis, quality control, recycling and alternative energy harvesting.

OPTIONS : Multiple vessels, and multiple coolers to suit your application.

THE CAL3K-AP CALORIMETER

The CAL3K-AP Calorimeter uses a combination of the Isothermal and Adiabatic methods, while still using the dry method, i.e. it is waterless. The minimum determination time is up to 5 minutes. There is no need for an external oxygen filling station as the vessel is automatically filled with oxygen inside the bomb calorimeter and the pressure is monitored. The minimum CAL3K-AP system comes complete with the calorimeter, two bayonet bomb vessel and one air cooler. It can be expanded to 4 vessels and 3 coolers should your application requires it.

CAL3K-AP Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-AP Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-AP Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-AP Oxygen Bomb Calorimeter System | DDS Calorimeters
CAL3K-AP Oxygen Bomb Calorimeter System | DDS Calorimeters

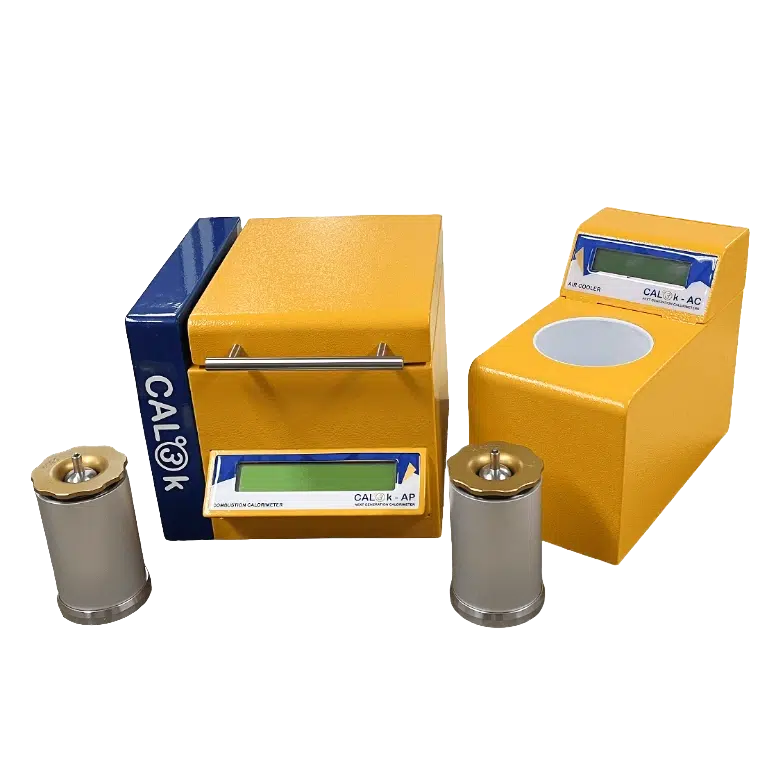

CAL3K-AP OXYGEN BOMB CALORIMETER SYSTEM

The complete CAL3K-AP oxygen bomb calorimeter system contains all the parts and consumables necessary to set up the unit. The installation kits included with the original purchase contains consumable for approximately 200 samples, depending on the type of sample being analyzed (coal analysis, animal feed analysis). Other samples like oil, might use more consumables as they are corrosive and could cause wear and tear. Additional consumables can be purchased separately (and in bulk quantities) for our authorized agents.

CAL3K-AP APPLICATION

All samples which can be ignited and where the released heat needs to be measured. It applies to food processing, feed stock composition, material and waste analysis, quality control, recycling and alternative energy harvesting. Special requirements are welcome and we have a library of weird and wonderful applications, including solid rocket fuel and explosives.

CAL3K-AP PERFORMANCE

The CAL3K-AP uses a combination of the Isothermal and Adiabatic calorimetry methods, while still using the dry method, i.e. it is waterless. The minimum determination time is up to 4 - 6 minutes. This can be adjusted to your needs via the included computer interface.

There is no need for an external oxygen filling station (3K-3) as the vessel is automatically filled with oxygen inside the bomb calorimeter and the pressure is monitored. The oxygen filling pressure can be changed (programmed) on the bomb calorimeter. The vessel pressure is monitored before firing for leaks and after firing for results quality assessment.

The fastest performance was achieved with one CAL3K-AP, 3 vessels and 2 coolers. This is a full occupation for a single operator and achieves 12 samples per hour.

COMPLETE CAL3K OXYGEN CALORIMETER SYSTEM

The CAL3K calorimeter requires a PC keyboard (as seen above/left with the complete system) to enter commands. The lid design has two shocks which open the lid automatically after a determination. This is really a nifty feature. The CAL3K-AP Oxygen Calorimeter will be supplied as a complete system which includes the calorimeter, the air cooler , and 2 bayonet oxygen vessels. It can be expanded to 4 vessels and 2 coolers.

The LCD display has 4 lines, the picture below only showing two of the lines. The first line shows what the CAL3K is doing at present, e.g. what mode the calorimeter is in and what it is doing.

LCD SCREEN

The second line shows the action the operator should take, e.g. "ENTER MASS, INSERT BOMB", etc. The third line is reserved for keyboard command and data entry, e.g. Enter Benzoic Acid Value in MJ. The fourth line gives additional information relating to faults and actions. If the subject help is activated then all 4 lines are used to display the help functions.

CALORIMETER WELL AND AUTOMATIC FILLING

This is the CAL3K Oxygen Bomb Calorimeter with the lid open. The new gas shocks allow for automatic opening. The shocks open the lid to 45°C, so that the well can ventilate after each sample determination.

The ATC (Ambient Temperature Control) insulates the oxygen bomb vessel from the outside environment. It contains heating elements designed so that the ATC temperature follows the vessel temperature. The ATC is cooled after a determination.

BOMB WELL - The bomb well has a contact arrangement at the bottom to connect to the bomb electronics.The vessel temperature and calibration data are retrieved via this contact.

FILLING NOZZLE - The filling nozzle connects the bomb cavity to the high pressure oxygen and the deflating valve contained in the lid.

TOP FILLING HEAD - The vessel is filled, deflated and the sample is ignited through this filling head.

The electronics compartment is located in the blue side panel of the calorimeter. This electronics compartment contains the control card and the firing circuit. This is what makes everything work. The control card contains all ports (Keyboard, printer, balance, USB, BlueTooth) and is exchangeable for easy maintenance.

OPERATOR ASSISTANCE

The CAL3K Calorimeter has some added features which will make the operation of the oxygen calorimeter a lot easier and user friendly. Every step in the determination of the calorific value of the sample has a help screen attached and operator prompts assist with step-by-step instructions to operate the calorimeter.

EVENT LOGGING - The CAL3K-AP has 63 event classifications and can store a maximum of 6800 logged events.

DEFAULT PARAMETER FIELDS - The CAL3K-A has one1 default parameter field for each mode and one experimental default mode for the user. All fields are for different operation and operating modes. The experimental mode can be changed via the PC interface. Note that the each operating mode requires a calibration.

FAULT AND FIELD TESTING CAPABILITY - The CAL3K-AP and vessel each have a factory and a field test built in. The field test allows the operator/user to test the functionality without any instruments or special connections.

CAL3K-AP KIT AND CONSUMABLES

The complete calorimeter system is delivered with installation kits for the calorimeter, air cooler and vessels (for approximately 200 firings).

The CAL3K Bomb Calorimeter Installation Kit includes : Power Supply (3K-SM), Mains Cable 220V (KETTLECORD), Balance Cable (3K-BC), PC Cable USB (USBCABAB), PC Keyboard PS2 (CAL2K-KB), Preparation Stand (3K-4-PS), Stainless Steel Tweezers (TWEEZERS/S/S), Certified Benzoic Acid Tablets (50 x 0.5g tablets per bottle)(CAL2K-4-BA), High Pressure Oxygen Pipe 4mm (4m long, clear)(3K-1-OP), Exhaust Pipe 6mm (2m long, black)(3K-1-EP), Oxygen Regulator Connection Standard (Quick Fit)(3K-1-RC), Calorimeter o-Rings (1 packet of 5)(3K-1-CF-05), O-Ring retainer for center filling plastic (3K-1-LCR), tool to remove o-ring retainer (3K-1-LCR-TOOL), Vessel Nozzle Kit complete with nozzle and o-ring and nut (3K-4-VN-KT), Silicone Grease Tube (GREASE_TUBE) and printed installation guide (3K-1-INST).

View All CAL3K Consumables & Parts

FAULT FINDING

Extensive fault finding and testing

SEVEN CALIBRATION FIELDS

For different mode and different calorimeters

TEMPERATURE ACCURACY

Temperature accuracy of 10ppm (parts per million)(0.00001°C)

STEP-BY-STEP HELP

Screen prompts assist with step-by-step instructions to operate the calorimeter

BAYONET BOMB VESSEL

Self-Locking and Self-Sealing manual bayonet bomb vessel

VARIABLE FILLING PRESSURE

Allows for variable filling pressure

HIGH SPEED DETERMINATIONS

Choose between faster or more accurate determinations

RESULTS

Results in MJ/Kg, BTU/Ib or Callg

AIR COOLER

No water required to cool the bomb vessel

EXTREMELY ACCURATE

Extremely accurate (%RSD - 0.05%) determination eliminates multiple sample repeats

COMPENSATION*

Compensation for firing energy and sulphur

BALANCE INTERFACE

Balance interface with baud speed setting

MULTIPLE COMM CHANNELS

1 Wired (USB) and 2 optional wireless channels

PRESET FIELDS

One default setting per mode

IMPROVED INITIAL TIMING

Based on drift and time, or time after drift

USER FRIENDLY

User Friendly Operation

OPERATING PARAMETERS

Operating parameters can be changed via USB interface in experimental mode

FULL LIMS SUPPORT

For the assignment, scheduling, and tracking of samples

10 CALIBRATION AVERAGE

For variable amount of calibration average to suit your application

RESTRICT ACCESS

Operating parameter access is password restricted

FILTER DATA ON EVENTS

Extensive testing and detailed data viewing

ECO FRIENDLY

Eco Friendly - small carbon footprint. No water, low power consumption

LOW POWER CONSUMPTION

Very low power consumption. No temperature controlling required

LARGE STORAGE

Up to 1024 results storage

TEMPERATURE RANGE

Extensive temperature range from 0°C to 70°C

LINEAR SENSORS

Linear temperature sensing with platinum sensors

INTELLIGENT VESSEL

Intelligent vessel with built-in temperature sensing

EVENT LOGGING

Built-in event logging for ~6000 events

SAFETY

Safety checks guarantee the safety of the operator

LEAK DETECTION

Detects leaks and aborts the firing in the event of a leak

TEMPERATURE CONTROL

No temperature control of the lab/room needed

NO WATER REQUIRED

No Water Bucket. No Spillage.No Measuring

THREE OPERATING MODES

Isothermal, Adiabatic and ISOBATIC (and experimental)

MANUAL OXYGEN FILLING

Makes use of an external oxygen filling station

Specification Information
Working (Operating) Temperature 15-70°C
Storage Temperature 0-70°C
Temperature Resolution 0.000001°C
Reproducibility/Repeatability <0.01% RSD
Resolution 0.000001 MJ/Kg
Results per hour 12 samples per hour using 3 bayonet bomb vessels
Measuring range max 99MJ, 99000J
Working temperature min 0°C
Working temperature max 50°C
Temperature Measurement Resolution 10ppm (parts per million)
Cooling Medium Air
Type of Cooling Airflow
Oxygen Operating Pressure Max 40 bar
Balance/Scale Interface RS232
Printer Interface RS232
PC Interface USB
Power Input 12W
Interface External Keyboard PS2
Oxygen Filling Automatic
De gasification Automatic
Halogen (Decomposition) Vessel Yes, optional
Analysis according to DIN 51900 Yes
Analysis according to ASTM D240 Yes
Analysis according to ASTM D4809 Yes
Analysis according to ASTM D5865 Yes
Analysis according to ASTM E711 Yes
Analysis according to ISO 1928 Yes
Dimensions 350mm x 280mm x 240mm
Weight ~12 kg
Permissible Ambient Temperature 0-35°C
Permissible Relative Humidity 80%
RS232 Interface Yes
USB Interface Yes
Voltage 220-240/ 100-120V, 12VDC, 3Amp
Frequency 50/60 Hz
